VAPolyTS
Polyphonic Synthesizer





















VAPolyTS is polyphonic synthesizer for iPhone, iPad and Mac. It is inspired by the synthesizers which contributed to shape iconic sounds of Trance, House and Techno Music in 1990’s. It operates as a stand alone or as an AudioUnit Extension (AUv3). Stand Alone supports Ableton Link, MIDI and audio file export.

Synthesizer

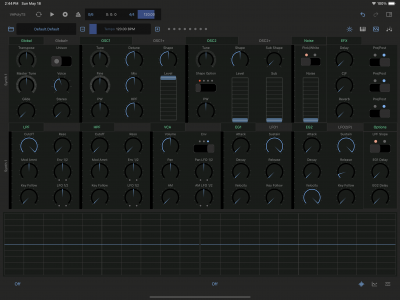

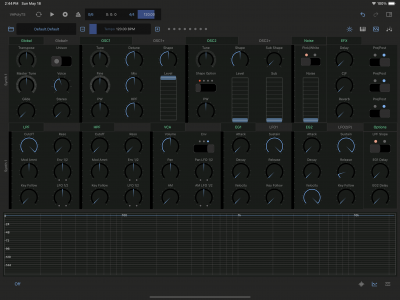

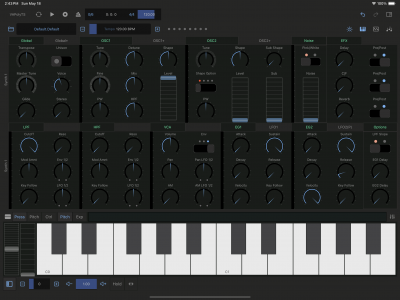

The synthesizer features two stack oscillators. The one of them can generate mix of detuned seven oscillator outputs. The other one can generate mix of several octave shifted oscillator outputs. It also features a mixer, a resonant low pass filter, a resonant hight pass filter, an amplifier, two envelope generators, two LFO and analog style step sequencer.

Effects

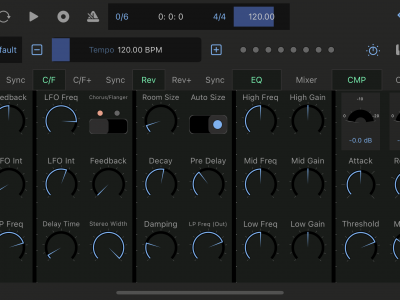

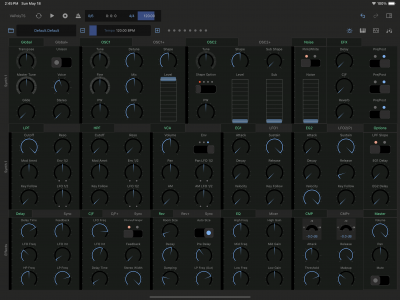

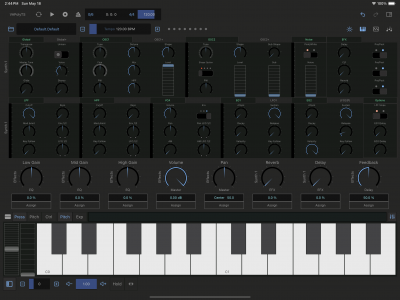

The Effects include delay, chorus, flanger, reverb, eq and compressor.

Sequencer

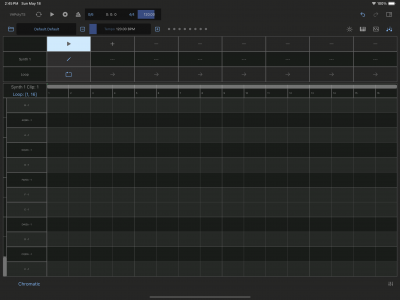

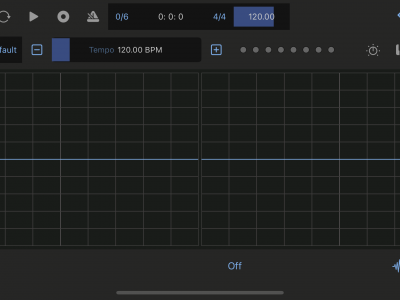

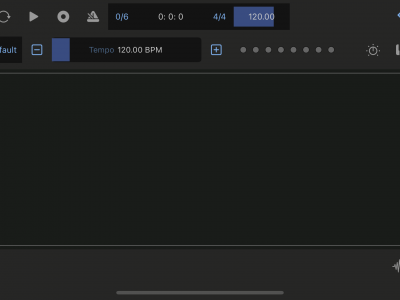

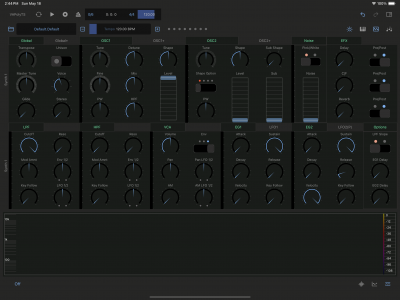

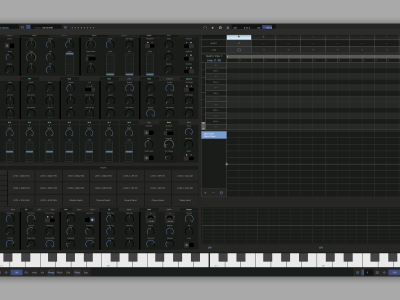

The sequencer features piano roll and parameter automation editor to program 16 bar pattern per clip.
Main Features
Synthesizer
- Polyphonic subtractive synthesizer.
- Stack oscillator which can generate mix of seven detuned oscillator outputs.
- Stack oscillator which can generate mix of several octave shifted oscillator outputs.

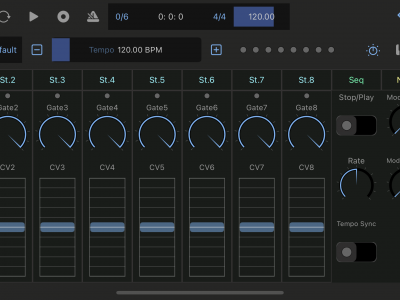

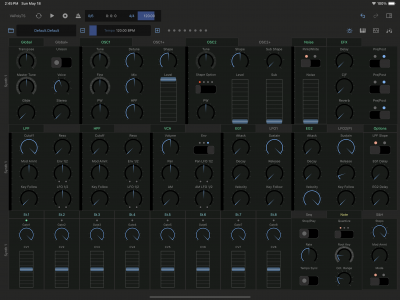

- Analog Style Step Sequencer.

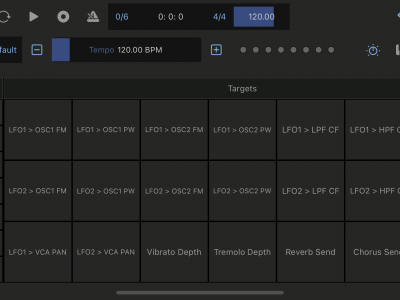

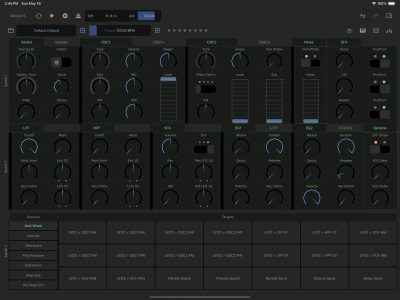

- Eight Assignable Controllers.
- Maximum 8 voice polyphony per timbre. (Maximum number of touches are varied on devices.)
- Include 256 Factory Presets.
Sequencer

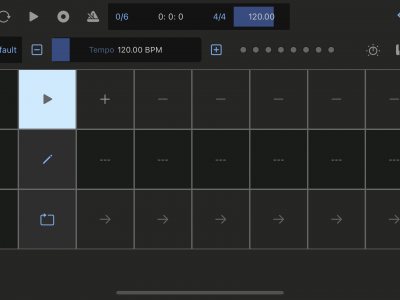

- 16 bar patterns per clip. Total 8 clips.
- Piano Roll and Parameter automation.
Audio Export
- Linear PCM format (AIFF, WAV and CAF) and compressed format (AAC)
Others
- Support MIDI 2.0. Support Foot Pedal (CC#11, CC#64) and Per Note Control.
- Support iCloud Drive.
- Support Ableton Link, Bluetooth MIDI, MIDI In / Out.
- Support Audio Unit Extension (AUv3)

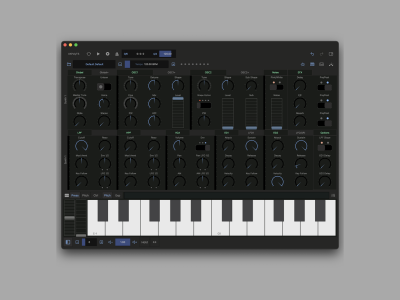

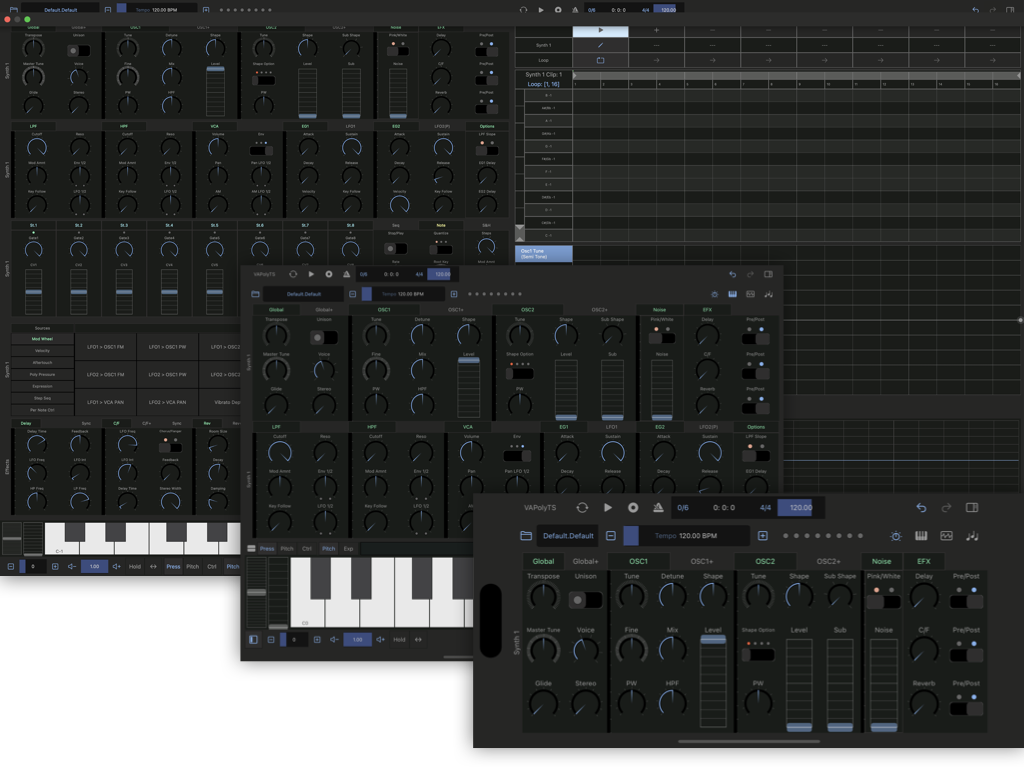

Works on iPhone, iPad and Mac.
System Requirements
- iOS 17 or later
- macOS 14 or later
- Devices with Apple Silicon are recommended. A13 Fusion or above is highly recommended. If sound is distorted when using a device with less CPU power, reduce number of voices.
- AudioUnit Extension (AUv3) requires host application which support AudioUnit Extension.
- AudioUnit Extension (AUv3) is supported by Apple Garage Band on iOS and macOS, and Apple Logic on Mac. For any other DAW, it depends on the application and some of them don’t support AudioUnit Extension (AUv3).
- *Apple, Mac and GarageBand are trademarks of Apple Inc., registered in the U.S. and other countries.
- *Ableton and Link are trademarks of Ableton AG.
- *All products, companies and standard names are trademarks or registered trademarks of their respective holders.
- * Ableton Link requires Local Area Network connections.
Specifications
Synthesizer
Synthesizer
- Polyphonic synthesizer

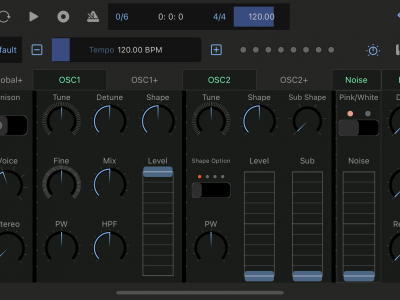

Oscillator 1 & 2
- Continuously variable wave shape (Triangle, sawtooth, square)
- Pulse width for square
- Tuning +/- 24 semitones
- Fine tuning +/- 50 cents
- Frequency Modulation (Exponential)
- Pulse Width Modulation
- Shape Modulation (Oscillator 1)
- Hard Sync (oscillator 1 to oscillator 2)
- Transpose: +/- 24 semi tones.
- Master Tune: +/- 50 cents
- Detune, Mix, HPF (Oscillator 1)
- Shape Option (Oscillator 2)
- Sub: Shape Option (oscillator 2)
LFO
- Wave shape: sine, saw, down saw, square, triangle, random
- Frequency Range: From 0.04Hz to 42.2Hz
- Amplitude modulation by ADSR envelope
- Polyphonic (LFO2)
- Frequency Modulation by ADSR envelope. (LFO2)
ADSR Envelope
- Attack time: From1ms to 6 sec
- Decay time: From 1ms to 10 sec
- Sustain level: From 0 to 100%
- Release time: From 1ms to 10 sec
- Delay time: From 0ms to 10 sec
- Key Follow: From 100% to 25% (envelope length)

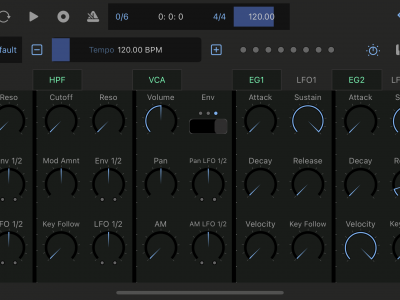

Filter
- High pass filter: -12 dB per octave
- Low pass filter: -12 dB per octave, -24 dB per octave
- Frequency modulation: ADSR, LFO, Key Follow
Amplifier
- Envelope: ADSR / Gate
- Amplitude modulation by LFO
- Pan modulation by LFO
Controllers
- Modulation Wheel, Pitch Bend Wheel
Arpeggio
- Type: Up, Down, Up&Down. Random
- Frequency: From 1 Hz to 20 Hz
Portamento (Glide)
- Time: From 10 ms to 10 second
Step Sequencer (Analog Style)
- 8 Steps
- Sample & Hold
- Clock Frequency: From 1 Hz to 20 Hz
Sequencer (Piano Roll)
- Loop Length: from 1 bar to 16 bars
- Clip: 8 clips
- Tempo: from 20 BPM to 999 BPM
- Host Sync: On and Off
Effect
Delay, Chorus, Flanger, Reverb, EQ and Compressor
*Appearance and specification of products are subject to change without notice.
Release Note
Version 1.0
- Initial release
