VAPolyMk3
Multi Synthesis Synthesizer

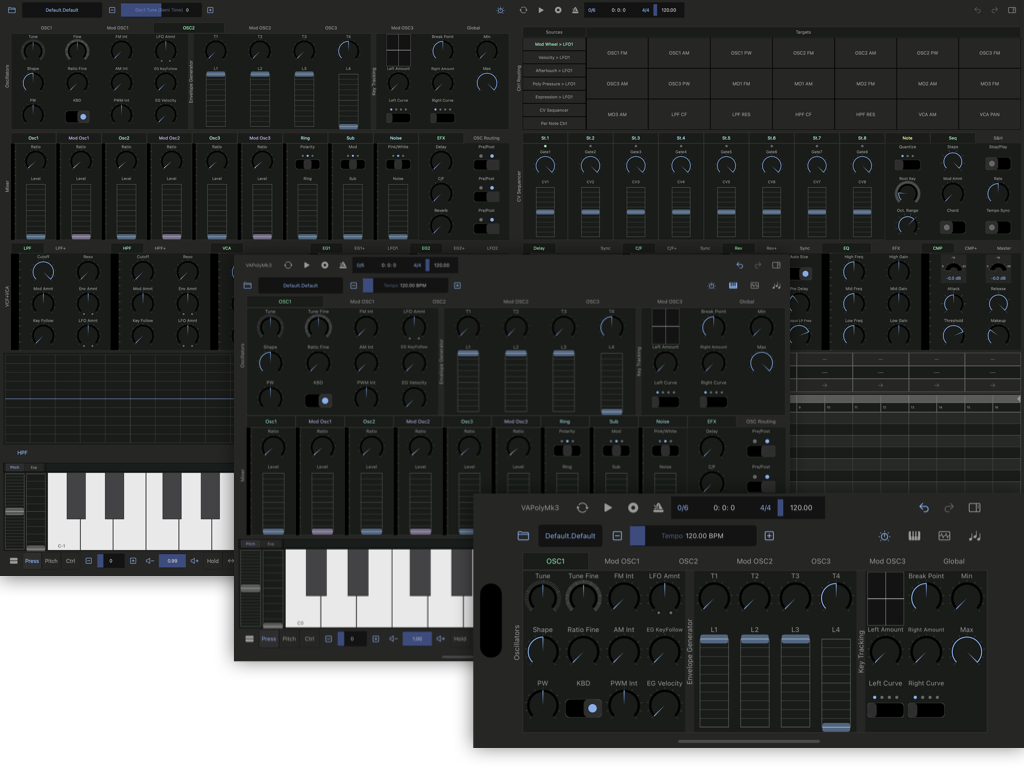

VAPolyMk3 is a multi synthesis polyphonic synthesizer for iPhone, iPad and Mac. Inspired by the last generation of classic analog synthesizers in the late 1980’s such as Oberheim Matrix series synthesizers, It offers Subtractive Synthesis and modular FM Synthesis. It operates as a stand alone or as an AudioUnit Extension (AUv3). Stand Alone supports Ableton Link, MIDI and audio file export.

Synthesizer

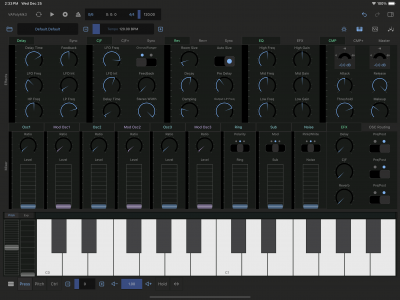

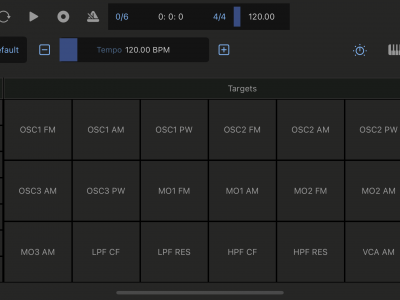

Oscillator Section features 3 Oscillators and 3 Modulation Oscillators. Each Oscillator has envelope and amplifier. Oscillators can be routed for Subtractive Synthesis and FM Synthesis. Signal from Oscillators are routed to mixer, resonant low pass filter, resonant hight pass filter and amplifier. The synthesizer also features two ADSR envelopes per voice, two LFO and analog style sequencer.

Effects
The Effects include delay, chorus, flanger, reverb, eq and compressor.

Sequencer

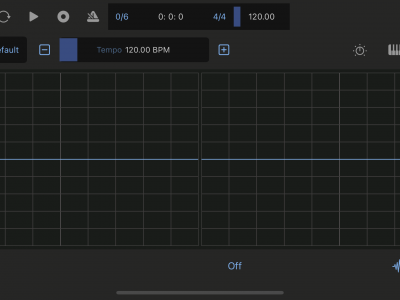

The sequencer features piano roll and parameter automation editor to program 16 bar pattern per clip.
Main Features
Synthesizer
- 3 oscillators and 3 modulation oscillators can be routed for Subtractive Synthesis and FM Synthesis.
- Analog Style CV Sequencer.
- Maximum 8 voice polyphony. (Maximum number of touches are varied on devices.)
- Option to turn off anti-aliasing for devices with less CPU power.
- Include 271 Factory Presets.
Sequencer
- 16 bar patterns per clip. Total 8 clips.
- Piano Roll and Parameter automation.
Audio Export
- Linear PCM format (AIFF, WAV and CAF) and compressed format (AAC)
Others
- Support MIDI 2.0. Support Foot Pedal (CC#11, CC#64) and Per Note Control.
- Support iCloud Drive.
- Support Ableton Link, Bluetooth MIDI, MIDI In / Out.
- Support Audio Unit Extension (AUv3)

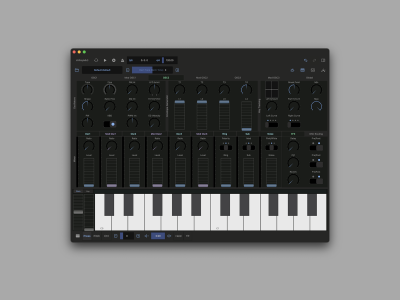

Works on iPhone, iPad and Mac.
System Requirements
- iOS 17 or later
- macOS 14 or later
- This app requires a lot of CPU power. Devices with Apple Silicon are recommended. A13 Fusion or above is highly recommended. if sound is distorted when using a device with less CPU power, turn Anti-Aliasing-Option off or reduce number of voices.
- AudioUnit Extension (AUv3) requires host application which support AudioUnit Extension.
- AudioUnit Extension (AUv3) is supported by Apple Garage Band on iOS and macOS, and Apple Logic on Mac. For any other DAW, it depends on the application and some of them don’t support AudioUnit Extension (AUv3).
- *Apple, Mac and GarageBand are trademarks of Apple Inc., registered in the U.S. and other countries.
- *Ableton and Link are trademarks of Ableton AG.
- *All products, companies and standard names are trademarks or registered trademarks of their respective holders.
- * Ableton Link requires Local Area Network connections.
Specifications
Synthesizer
Synthesizer
- 8 voice polyphonic multi synthesis synthesizer

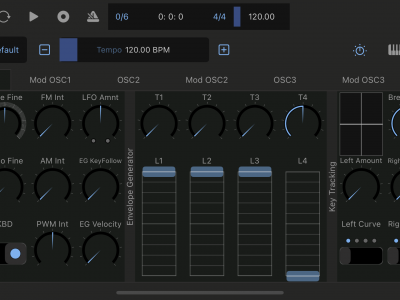

Oscillators
- Three Oscillators and Three modulation oscillators.
- Envelope: 5 stage, adjustable time and level for each stages. (except sustain stage)
- Transpose: +/- 24 semi tones.
- Master Tune: +/- 50 cents
- Keyboard on/off
- Tuning +/- 24 semitones
- Fine tuning +/- 50 cents
- Key Tracking
- Pitch Envelope
- Frequency Modulation
- Amplitude Modulation

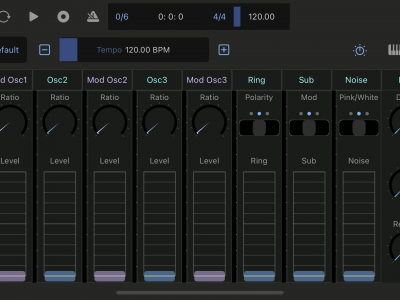

Oscillator
- Continuously variable wave shape (sine, sawtooth, square)
- Sub: Square, one octave lower (oscillator 1)
- Pulse width for square
- Pulse Width Modulation
- Hard Sync (oscillator 1 to oscillator 2 and oscillator 3)
- Ring Modulation (oscillator 1 and oscillator 2)
Modulation Oscillator
- Sine wave
LFO
- Wave shape: sine, saw, down saw, square, triangle, random
- Frequency Range: From 0.04Hz to 42.2Hz
- Amplitude modulation by ADSR envelope
ADSR Envelope
- Attack time: From1ms to 6 sec
- Decay time: From 1ms to 10 sec
- Sustain level: From 0 to 100%
- Release time: From 1ms to 10 sec
- Delay time: From 0ms to 10 sec
- Key Follow: From 100% to 25% (envelope length)

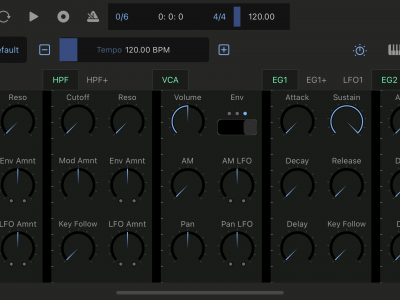

Filter
- High pass filter: -12 dB per octave
- Low pass filter: -12 dB per octave, -24 dB per octave
- Frequency modulation: ADSR, LFO, Key Follow
Amplifier
- Envelope: ADSR / Gate
- Amplitude modulation by LFO
- Pan modulation by LFO
Controllers

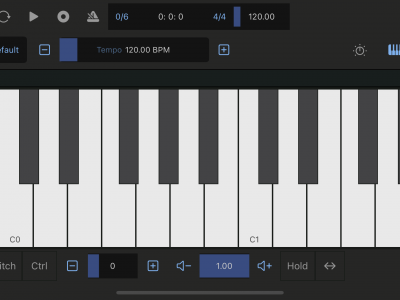

- Modulation Wheel, Pitch Bend Wheel
Arpeggio
- Type: Up, Down, Up&Down. Random
- Frequency: From 1 Hz to 20 Hz
Portamento (Glide)
- Time: From 10 ms to 10 second

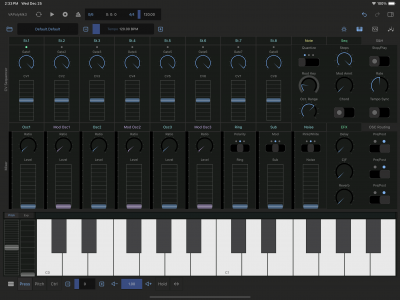

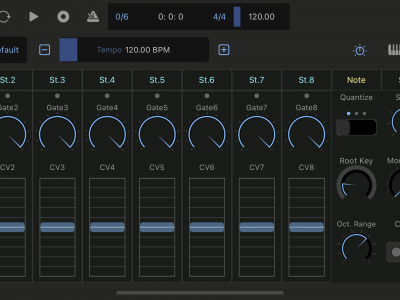

CV Sequencer
- 8 Steps
- Sample & Hold
- Clock Frequency: From 1 Hz to 20 Hz

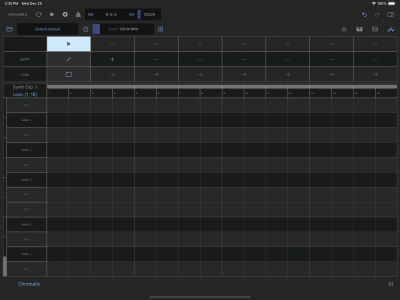

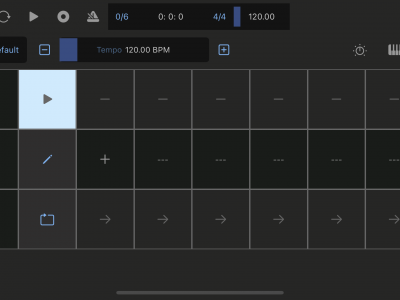

Sequencer
- Loop Length: from 1 bar to 16 bars
- Clip: 8 clips
- Tempo: from 20 BPM to 999 BPM
- Host Sync: On and Off

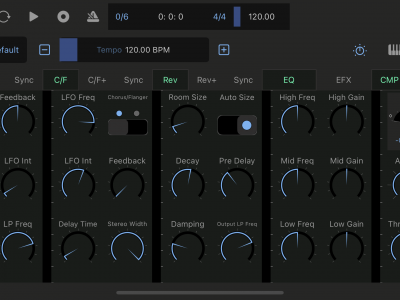

Effect
Delay, Chorus, Flanger, Reverb, EQ and Compressor
*Appearance and specification of products are subject to change without notice.
Release Note
Version 1.0
- Initial release
Version 1.0.1
- Fixed a problem that anti aliasing option is not turned off correctly even if UI shows it is turned off.
